Vinyl Coated Welded Wire Mesh, 16 gauge

Vinyl Coated - VC - welded wire fencing and meshes are long-lasting and attractive. Galvanized welded mesh is coated with a thick layer of PVC and tightly bonded to the wire by a heat process. The coating is flexible and will not crack when the wire is bent. It is stable over a wide temperature range, maintaining its qualities in extremes of hot and cold temperatures. UV inhibitors are in the vinyl to retard degradation from sunlight. The coating is also very resistant to scraping and abrasion. Vinyl-coated welded wire mesh and fence, sometimes called plastic-coated wire products, are very strong and durable. They are long-lasting and rust-resistant. They have double protection. The vinyl coating seals the wire from water and other corrosive elements, and a zinc coating protects the underlying mesh.

Let Louis Page help you with your 2023 wire mesh projects.

½" x ½" mesh

Vinyl coated welded wire mesh and fencing. Galvanized welded mesh is coated with a thick layer of black PVC fused to the wire by a heat process. This makes an extremely durable and long-lasting mesh impervious to water, weather and corrosive elements. And the wire is also protected by the coating of zinc. The PVC used is flexible and will not crack when the wire is bent. It has UV inhibitors to retard degradation from sunlight. This mesh material is particularly useful for animal enclosures, cages, anti-predator barriers or other applications where rust prevention, long life, and a small mesh are desired. Also ideal for chukar pen flooring.

Vinyl Coated - 16 gauge, ½" x ½" mesh, 12" x 100'  -  70 lbs..5x.5_black_16_ga

     SKU: VC165512B-A (pallet minimums)

Vinyl Coated - 16 gauge, ½" x ½" mesh, 18" x 100'  -  105 lbs.

     SKU: VC165518B-C

Vinyl Coated - 16 gauge, ½" x ½" mesh, 24" x 100'  -  130 lbs.

    SKU: VC165524B-C

     SKU: VC165524BBO-J

Vinyl Coated - 16 gauge, ½" x ½" mesh, 36" x 100'  -

SKU: VC165536B-C

SKU: VC165536BBO-J

         SKU: VC165536BBO-A  195 lbs.

Vinyl Coated - 16 gauge, ½" x ½" mesh, 48" x 100'  - 260 lbs.

        SKU: VC165548B-C

        SKU: VC165548BBO-J

Vinyl Coated - 16 gauge, ½" x ½" mesh, 60" x 100'  - 325 lbs.

     SKU: VC165560B-J

*Also available in American-made, call for quote.
***Also available in American and Italian call for a quote, please specify American or Italian wire.

-J Standard gauge (Made in China)
-A American Made
-C Italian Made

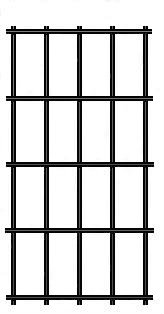

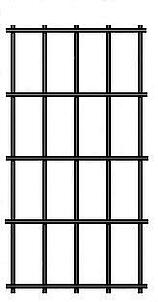

½" x 1" mesh

Vinyl coated galvanized welded wire mesh and fence will last a long time! After 16 gauge wire is welded into a ½" x 1" mesh, it is dipped into a bath of molten zinc. The entire mesh, including the welded areas, is thoroughly sealed and protected against rust and corrosion. Then a thick layer of black PVC is bonded to the mesh.  This welded wire mesh and fence will last years longer than galvanized wire. This smaller ½" x 1" mesh and fence has a wide variety of uses, including small animal cages, flooring in rabbit cages and anti-predator barriers for the perimeter of bird pens or gardens.16 gauge 1/2"x1" black vinyl coated welded wire

Vinyl Coated - 16 gauge, ½" x 1" mesh, 18" x 100'  -  75 lbs.

     SKU: VC165118B-C

     SKU: VC165118B-J *

Vinyl Coated - 16 gauge, ½" x 1" mesh, 24" x 100'  -  93 lbs.

     SKU: VC165124BBO-J ***

Vinyl Coated - 16 gauge, ½" x 1" mesh, 36" x 100'  -  140 lbs.

     SKU: VC165136BBO-J ***

Vinyl Coated - 16 gauge, ½" x 1" mesh, 48" x 100'  -  186 lbs.

     SKU: VC165148BBO-J **

Vinyl Coated - 16 gauge, ½" x 1" mesh, 60" x 100'  -  232 lbs.

     SKU: VC165160B-J

Vinyl Coated - 16 gauge, ½" x 1" mesh, 72" x 100'  -  349 lbs.

     SKU: VC165172B-J *


*Also available in American-made, call for quote.

***Also available in American and Italian call for a quote, please specify American or Italian wire.

-J Standard gauge (Made in China)
-A American Made
-C Italian Made

1" x 1" mesh

Vinyl coated welded wire (VC) mesh fence is galvanized and coated with a thick layer of PVC. The vinyl is fused to the galvanized welded wire mesh by a heat process. This creates an attractive, tough, long-lasting mesh impervious to both weather and chemicals. Vinyl coated welded wire mesh and fence has the longest lifetime in any application. The PVC used is flexible and will not crack when the wire is bent. It has UV inhibitors to retard degradation from sunlight. Ideal for animal cages, ground wire for bird pens and any other use requiring long life and attractive durability.

Pool Fence - this mesh, in 48" and 60" heights may meet for fencing around swimming pools. Important: be sure to check with local ordinances. Check out our Pool Fence page.

Made in Italy: Our Choice

A high quality product with GBW mesh for the 1" x 1" 16 gauge and GAW for the 1½" x 4 14 gauge. UV treated PVC is bonded to the wire. This excellent mesh has a 10 year warranty.

16 gauge, 1" x 1"

Vinyl Coated - 16 gauge, 1" x 1" mesh, 18" x 100'  -  51 lbs.

   SKU: VC161118B-C  (not a stock item, email for availability)

Vinyl Coated - 16 gauge, 1" x 1" mesh, 24" x 100'  -  60 lbs.

   SKU: VC161124B-C

Vinyl Coated - 16 gauge, 1" x 1" mesh, 30" x 100'  -  85 lbs.

   SKU: VC161130B-C

16 gauge (core wire) vinyl coated 1" x 1" mesh, 48" x 100' - 135 lbs.

   SKU: VC161148B-C (black)



STANDARD TRUE GAUGE IMPORTED WIRE

Vinyl Coated - 16 gauge, 1" x 1" mesh, 24" x 100'  -  60 lbs.

     SKU: VC161124B-J (black)

Vinyl Coated - 16 gauge, 1" x 1" mesh, 36" x 100'  -  90 lbs.

     SKU: VC161136B-J (black)

Vinyl Coated - 16 gauge, 1" x 1" mesh, 48" x 100'  -  135 lbs.

     SKU: VC161148B-J (black)

Vinyl Coated - 16 gauge, 1" x 1" mesh, 60" x 100'  -  150 lbs.

     SKU: VC161160B-J (black)

Vinyl Coated - 16 gauge, 1" x 1" mesh, 72" x 100'  -  180 lbs.

     SKU: VC161172B-J (black)



USA-MADE

Vinyl Coated - 16 gauge, 1" x 1" mesh, 18" x 100'  -  51 lbs.

     SKU: VC161118B-A (black)

Vinyl Coated - 16 gauge, 1" x 1" mesh, 24" x 100'  -  60 lbs.1x1_black_16_ga

     SKU: VC161124B-A

Vinyl Coated - 16 gauge, 1" x 1" mesh, 30" x 100'  -  85 lbs.

     SKU: VC161130B-A (black)

Vinyl Coated - 16 gauge, 1" x 1" mesh, 36" x 100'  -  90 lbs.

     SKU: VC161136B-A (black)

Vinyl Coated - 16 gauge, 1" x 1" mesh, 48" x 100'  -  135 lbs.

     SKU: VC161148B-A (black)

Vinyl Coated - 16 gauge, 1" x 1" mesh, 60" x 100'  -  150 lbs.

     SKU: VC161160B-A (black)

Vinyl Coated - 16 gauge, 1" x 1" mesh, 72" x 100'  -  180 lbs.

     SKU: VC161172B-A (black)

-J Standard gauge (Made in China)
-A American Made
-C Italian Made

3" x 2"

3" x 2" in available in 36", and 48" x 50' rolls both Black and Green PVC coating over GBW welded wire mesh.3x2_black

16 gauge, 3" x 2" mesh, 36" x 50' - 17 lbs.

SKU: LYGRGGR3650-ECON (green)

16 gauge, 3" x 2" mesh, 48" x 50' - 23 lbs.

SKU: LYGRGGR4850-ECON (green)

-J Standard gauge (Made in China)
-A American Made
-C Italian Made

Download the 16 gauge VC 3"x2" brochure!
