U Channel Posts

U Channel Sign Posts -- Made in USA

  • Weight: 2LB and large
  • Uses: for streets, parking, highways, roadways, or general signage
  • Material: 100% high-quality recycled rail steel, strong enough for a train
  • Pros: Lightweight and long-lasting
  • Finishes: Unfinished, galvanized, baked enamel, or powder-coated
"U-channel posts are the optimal choice for use in harsh conditions."

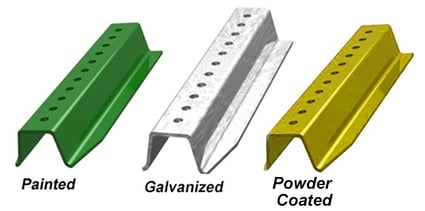

u-channel-post-finishes

Call Terry at 978-486-3116 for your U Channel Posts Quote!

New for 2024! U Channel Posts in varying lengths, weights, and finishes

U Channel Sign Post Specs

  • Weight: 2LB and large
  • Uses: for streets, parking, highways, roadways, or general signage
  • Material: 100% high-quality recycled rail steel, strong enough for a train
  • Pros: Lightweight and long-lasting
  • Finishes: Unfinished, galvanized, baked enamel, or powder-coated
U Channel Posts are an excellent choice for harsh conditions

Lengths: U Channel Posts are available in 6ft, 7ft, 8ft, 10ft, 11ft, and 12ft lengths. Call for special lengths.

Material: U-channel posts are produced from standard “T” rails weighing 91 lbs/yd or more according to ASTM A499-15, Grade 60.

Punching: .375″ diameter holes on 1.0″ centers, with the first hole 1.0″ from the top.

Minimum order: 50 pieces

U-Post-Dimensions-Franklin-Industries-874x1024





12½ gauge ZA - 5% Zn, 95% Al

2096-6-12½ style, 96" x 330' - 6" spacing between vertical wires   -  408 lbs.

SKU: FFDR20966-330-ZA-ST

  • 20 horizontal wires spaced: 6@3", 2@4", 2@5", 3@6", 6@7"

12½ gauge ZA with Black paint

1348-3-12½ style, 48" x 200' - 3" spacing between vertical wires  -  228 lbs.

SKU: FFDR13483-200-ZA-B-ST

  • 13 horizontal wires spaced: 6@3", 2@4", 2@5", 2@6"

1348-6-12½ style, 48" x 330' - 6" spacing between vertical wires  -  244 lbs.

SKU: FFDR13486-330-ZA-B-WST

  • 13 horizontal wires spaced: 6@3", 2@4", 2@5", 2@6"

1661-3-12½ style, 61" x 200' - 3" spacing between vertical wires  -  280 lbs.

SKU: FFDR16613-200-ZA-B-ST

  • 16 horizontal wires spaced: 6@3", 2@4", 2@5", 3@6", 1@7"

1775-6-12½ style, 75" x 330' - 6" spacing between vertical wires  -  337 lbs.

SKU: FFDR17756-330-ZA-B-ST

  • 17 horizontal wires spaced: 6@3", 2@4", 2@5", 3@6", 3@7"

1796-6-12½ style, 96" x 330' - 6" spacing between vertical wires  -  354 lbs.

SKU: FFDR17966-330-ZA-B-WBT

  • 17 horizontal wires spaced: 3@6", 2@4", 2@5", 3@6", 6@7"

2096-6-12½ style, 96" x 330' - 6" spacing between vertical wires  -  396 lbs.

SKU: FFDR20966-330-ZA-B-ST

  • 20 horizontal wires spaced: 6@3", 2@4", 2@5", 3@6", 6@7"

12.5/14 gauge ZA - 95% Zn, 5% Al

1478-6-12.5/14 style, 78" x 330' - 14 gauge, 6" spacing between vertical wires  -  210 lbs.

SKU: FFDR14786-330-ZA-WBT

  • 14 horizontal wires spaced: 2@3", 1@4", 2@5", 2@6", 2@7", 4@8"

  • 12.5 gauge top and bottom wires, 14 gauge filler wires

1690-6-12.5/14 style, 90" x 330' - 14 gauge, 6"spacing between vertical wires  -  241 lbs.

SKU: FFDR16906-330-ZA-WBT

  • 16 horizontal wires spaced: 3@4", 2@5", 2@6", 8@7"

  • 12.5 gauge top and bottom wires, 14 gauge filler wires

NEW! Black Vinyl Coated Deer Fence - 2" x 4" Welded Wire14 gauge welded 2"x4" black vinyl coated deer fence


Galvanized 14 gauge 2" x 4" welded wire mesh is covered with a corrosion resistant coating of black PVC. The vinyl is protected from degradation by UV rays. Extra tall 96" height makes it perfect for use as a deer barrier around your property. Enclose the entire property or fence off specific areas. The black color and mesh size make this fence unobtrusive and aesthetically pleasing.

Black vinyl coated welded wire, 14 gauge, 2" x 4" mesh, 96" x 100' - 120 lbs.

SKU: LYGHVBL9610-ECON



Black Vinyl Coated Deer Fence - 1" Hex Netting

deer fence black vinyl coated 1

This black vinyl coated (VC) hexagonal poultry netting fence will last a long time. 1" mesh, 20 gauge core wire, galvanized before weaving (GBW) hex netting fence is dipped in a tough, flexible, thick coating of black PVC. The resulting vinyl coated hexagonal poultry netting fence is very corrosion resistant. Inhibitors in the vinyl protect it from UV degradation. The thick coating is tightly bonded to the wire and extremely resistant to cracking, chipping and weathering. Black color makes the mesh blend in with the landscape.

The strong, long-lasting mesh works well as a deer barrier fence. When deer encounter a black fence, they know there is a barrier but cannot see it distinctly. When deer cannot clearly see the top of a fence to judge the distance, they are much less likely to jump. Extra tall 90" height eliminates piecing together narrower rolls. The 90" dimension is nominal. Due to the tension and heat of the coating process, actual height may be between 88" and 90". The inherent resiliency of this mesh allows the fence to give upon impact.

Black Vinyl Coated Hex, 20 gauge, 1" mesh

        84" x 150' - 126 lbs.  -  SKU: HXVC184B-J

        90" x 100' - 85 lbs.   -  SKU: HXVC190B-ECON

For other sizes of coated hex netting go to the hexagonal vinyl coated

Download the Hex and Poly Deer Fence brochure!



Black Polypropylene Deer Fence

Heavy Duty Perimeter Fence - C-Flex P - from Tenax was specifically designed to be anblack polypropylene 90 impenetrable, impact resistant fence system to protect any designated area from deer and wildlife predation. Black plastic (UV stabilized polypropylene) is extruded into a strong 1.77" x 1.97" mesh netting fence, stronger than what was originally available. Greater strength reduces the chance of breakage from deer and wildlife running into it, lowering the need for fence repairs. 7½ foot height eliminates the need for multiple overlaps, reducing labor and installation time. The black plastic fence is very unobtrusive, yet serves as an effective barrier.

Other specifications of C-Flex Deer Fence listed below are also available.

Cintoflex C - 610 pound breaking load



72" x 100' - 16 lbs.  -  SKU: CF226-100-AL-T

72" x 330' - 40 lbs.  -  SKU: CF226-330-AL-T

90" x 100' - 21 lbs.  -  SKU: CF2275-100-AL-T

90" x 165' - 27 lbs.  -  SKU: CF2275-165-AL-T

90" x 330' - 49 lbs. - SKU: CF2275-330-AL-T

C-Flex P - Deer/Perimeter Fence - 686 pound breaking load

90" x 100' - 23 lbs.  -  SKU: CFDEER75-100-AL-T

90" x 165' - 37 lbs.  -  SKU: CFDEER75-165-AL-T

90" x 330' - 65 lbs.  -  SKU: CFDEER75-330-AL-T

C-Flex Heavy Duty Deer Fence - 890 pound breaking load

This roll is 7.5’ tall and 164’ long. It is the same mesh size as the regular deer fence but a much heavier product. This style should be used in high traffic deer areas. The mesh is 1¾″ square. You will need wood or metal posts to keep fence upright.

1.77" x .1.96" mesh, 90" x 100' - 34 lbs.

SKU: CFDEERHD75-100-MD-T

1.77" x .1.96" mesh, 90" x 165' - 50 lbs.

SKU: CFDEERHD75-165-MD-T

 Download the Hex and Poly Deer Fence brochure!

For other sizes of black polypropylene meshes go the Tenax Cintoflex Netting page.
