The Durability of Stainless Steel

Stainless steel wire mesh is long-lasting and versatile. The range of different gauges and mesh sizes that are available is extensive. Especially suited to situations where the mesh will be exposed to corrosive substances, stainless steel products can perform much better and last longer than other materials.

A List of Benefits

Stainless steel wire mesh panels can be special ordered, pre-cut to whatever sizes your project calls for. The advantages:

• Get only what you need
• Save material costs
• Reduce and eliminate unusable scrap
• Save labor costs
• Easy to use
• No need to buy material in rolls
• No need to struggle to flatten the curve of the roll before cutting pieces
• Save time
• Start on your project as soon as panels arrive
• Cuts are precise, done in a controlled environment
• Custom cut panels are tailored to your specific needs
• Wide choice of specifications for different purposes

Stainless steel wire meshes can be the perfect solution to many difficult applications. And the availability of custom-cut panels makes the job that much easier. Truly a win-win!

Seriously consider using pre-cut wire mesh panels on your next job.

A Impressive Array of Specifications

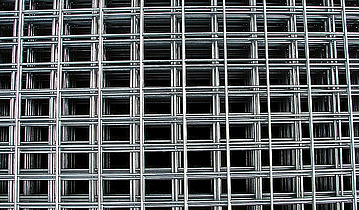

Welded wire mesh is a versatile product that can be used in many different applications with a wide variety of specifications from which to choose: wire gauge size, mesh size, and finish.

Wire Gauges

• 27, 23, 21, 20, and 19 gauges - these lightweight gauges are generally used in welded wire products with small mesh openings such as hardware cloth.
•  16, 14, and 12.5 gauges - the standard, most readily available heavier gauge wires used in welded wire meshes for fences, cages, and partitions.
• 11, 10.5, and 8.5 gauges - heavy-duty wire used in strong meshes suitable for lobster traps, railing safety panels, and other specialized applications.
• Other gauges are also available, both heavier and lighter, for more specialized applications.


Mesh Sizes

• 1/8" x 1/8", 1/4" x 1/4", 1/3" x 1/3" and 1/2" x 1/2" - typical small mesh sizes for light gauge hardware cloth welded wire meshes.
• 1/2" x 1/2", 1/2" x 1", 1" x 1", and 2" x 3" - these welded wire meshes are usually made from 16 gauge wire.
• 1/2"x 3", 1" x 1", 1" x 2", 1.5" x 4", 2" x 2" and 2" x 4" - meshes available in 14 gauge wire.
• 1/2" x 3", 1" x 1", 1.5" x 1.5", 2" x 2" and 2 x 4" - 12.5, 11, 10.5 and 8.5 gauge wires are available in some of these mesh sizes.

And Finishes

• Galvanized Before Weld - the most common and generic type of welded wire mesh found in most retail stores. Products are economical but have a limited lifetime. Galvanized wire is welded into the mesh configuration. The welding process burns the protective zinc coating off the wire, exposing it to rust and corrosion.
• Galvanized After Weld - the welded wire meshes with superior rust and corrosion resistance. Use these products when you want the mesh to last. The initial higher cost is offset by a long lifetime, avoiding the need for frequent replacement. After the mesh is welded it is immersed in a bath of molten zinc, thoroughly protecting it against rust and corrosion.

• Vinyl Coated - combining the double rust and corrosion protection of zinc and vinyl, these welded wire meshes combine long life with an attractive appearance. Black and green are the usual colors. Look for a PVC-coated product. There are high-quality products available and there are less expensive inferior products on the market. You get what you pay for.

• Other types of wire, such as stainless steel, are also available in welded wire meshes.

What kind of welded wire mesh do you need? Are you having trouble finding the welded wire mesh that you want? Give us a call. (866) 328-5018  We know what's out there and can be helpful in the decision-making process.

Would you like more choices?

Going Coastal

Stainless steel is well known for its strong resistance to rust and corrosion. Often specified for use in areas with a high potential of exposure to corrosive elements, stainless steel welded wire mesh and fence will last for many years. It is an especially fine product to use in coastal locations where the exposure to salt water and spray can rapidly degrade less robust products. Or use it in animal cages where it will stand up to the caustic effects of urine and feces. The smaller meshes make excellent barriers for nuisance wildlife exclusion.

An Extra Long Life of Service

Although initially more expensive, stainless steel products may have a longer lifetime than other types of welded and woven wire meshes and fences. The expense, the labor, the time and the hassle of replacement can be greatly reduced, if not eliminated.

Many specifications of welded stainless steel wire products are available in a variety of gauge, mesh and roll sizes. The most commonly used are listed below.

Type 304 - the most common grade, the classic 18/8 stainless steel with a composition of 18% chromium and 8% nickel.

23 gauge

•  1/4" x 1/4" mesh

21 gauge

• 1/3" x 1/3" mesh

19 gauge

• 1/2" x 1/2" mesh

18 gauge

• 1/3" x 1/3" mesh

16 gauge

• 1/2" x 1/2" mesh
• 1/2" x 1" mesh
• 1" x 1" mesh
• 2" x 2" mesh

14 gauge

• 1" x 1" mesh
• 1" x 2" mesh
• 2" x 2" mesh

Type 316 - the second most common grade with the addition of molybdenum.

18 gauge

• 1/2" x 1/2" mesh

This is not a complete listing of the stainless steel welded wire mesh and fence specifications. A variety of woven meshes are also available.
